Advanced 5G RAN modelling
A modular and advanced 5G network planning tool with extensive 5G NR modelling: mmWave propagation, massive MIMO and 3D beamforming deliver a flexible, evolutionary framework for 5G design and deployment.
Forsk · Atoll — RAN planning & optimisation software
ATOLL Multi-technology wireless network design & optimisation platform
Atoll supports wireless operators throughout the network lifecycle — from initial design to densification and optimisation.
Advanced multi-RAT RAN design for 2G, 3G, 4G and 5G, including massive MIMO, 3D beamforming and mmWave propagation.
- 0
- Active licenses worldwide
- 0
- Operators & vendors
- 0
- Countries & regions
- 2G → 5G
- Multi-RAT in one platform
5G NR · mmWave
Aster ray-tracing
Live KPIs
In-building 3D
Why Atoll
The industry standard for radio planning and optimisation
Atoll provides operators and vendors with a powerful and unique framework for designing and optimising indoor and outdoor radio access networks, from standalone deployments to enterprise-wide server-based configurations.
Prediction and measurement-based planning
Combine predictions with live-network data — KPIs, UE/cell/MDT traces and crowdsourced data — to model traffic evolution, identify hot spots, steer site selection and drive the AFP and ACP algorithms.
Integrated in-building and outdoor modelling
The Atoll In-Building module brings indoor design into the same framework: floor plans and building elements, indoor propagation, equipment installation layouts and automatic bills of materials.
In-built customisation capabilities
In-built task scripting and integration capabilities enable data- and service-level integration, letting operators streamline network planning and optimisation processes end to end.
Network lifecycle
One platform, from first design to live optimisation
Design
Greenfield dimensioning, site selection and coverage/capacity objectives for every technology.
Plan
Frequency, PCI, PRACH RSI and neighbour planning with prediction-based or imported interference matrices.
Deploy
Roll-out packages, antenna and parameter configuration, indoor/outdoor verification against measurements.
Densify & optimise
Automated cell planning, live-network KPIs, heat maps and progressive gain/loss evaluation for every change.

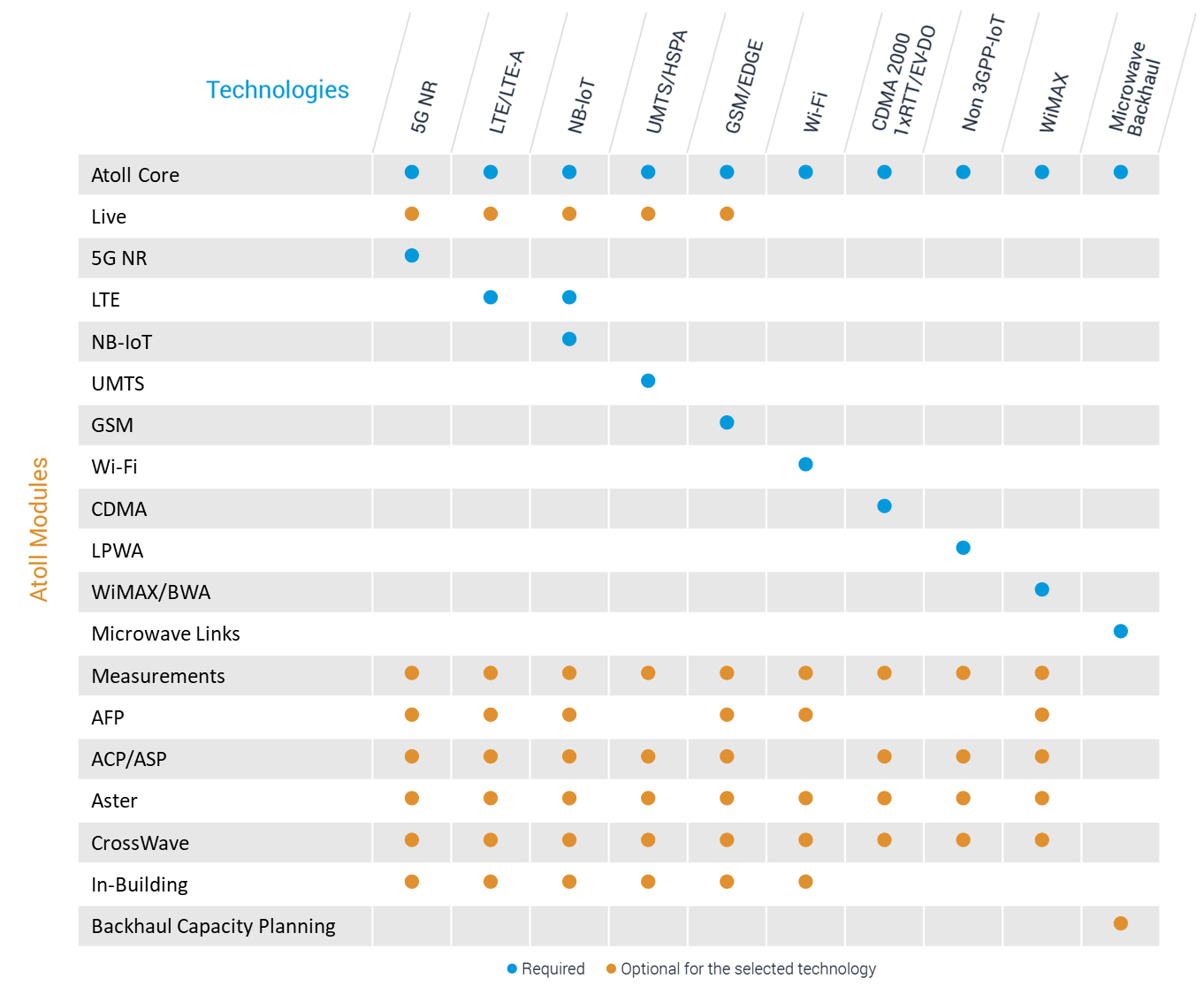

Platform architecture
A modular platform for every RAN technology
Atoll is based on a modular architecture that makes it adaptable to operators' configurations, technologies and functional requirements. All technology modules run on top of Atoll Core and several technologies can be combined in the same configuration for integrated multi-technology projects.
Atoll Core
The central module supporting the user interface, GIS features, the propagation modelling engine, data management services and interfaces.
Atoll Live & ACP
Combines KPIs, UE/cell/MDT traces and crowdsourced data with predictions, and lets Automatic Cell Planning use live data for site selection and optimisation.
Atoll In-Building
Design indoor wireless networks inside the Atoll user interface, for fully integrated indoor/outdoor planning processes.
Atoll Microwave
Backhaul and transmission network planning on the Atoll Core platform, with advanced LoS modelling and nLoS/NLoS capabilities for small-cell backhaul.
Aster & Aster mmWave
Advanced ray-tracing propagation models supporting multiple propagation scenarios and frequencies both below and above 6 GHz.

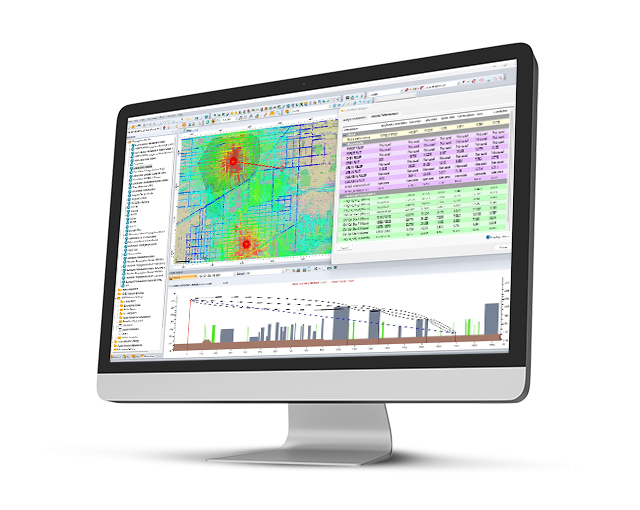

CrossWave
A universal high-performance propagation model developed by Orange Labs, supporting all technologies and environments from rural to dense urban.
Deployment scenarios
Atoll supports a wide range of implementation scenarios — from standalone workstations to enterprise-wide, server-based and multi-user configurations, with distributed computing across networked workstations and servers.
- Standalone, centralised and distributed configurations
- Multi-user database with consistency management
- Data synchronisation and user reconnection
- Multi-threading and distributed computing
- Advanced administration and privilege management
- Import/export from other planning tools
Oracle 19c / 21c
SQL Server 2022
PostgreSQL 15
Windows Server 2025
AWS · Azure · GCP

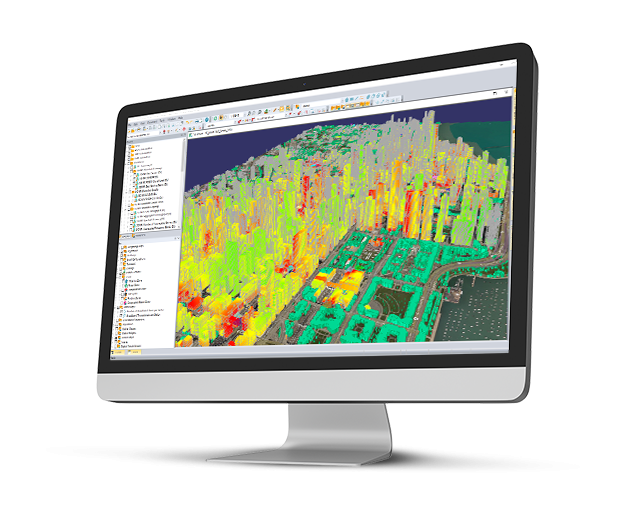

5G NR
Plan and optimise 5G in SA and NSA — together with 4G, 3G and 2G
Atoll lets operators plan and optimise 5G NR networks deployed in both NSA and SA modes, alongside 4G and legacy 2G and 3G layers. A multi-technology network database, a unified traffic model, a combined Monte Carlo simulator and a multi-RAT ACP module provide a complete, evolutionary framework for 2G/3G/4G/5G networks including small cells, integrated Wi-Fi and IoT.
5G network modelling
- All 5G NR frequency bands, including mmWave
- TDD, FDD, SUL and SDL duplex modes
- All carrier widths from 5 to 400 MHz
- Multiple bandwidth part configurations
- Numerologies: 15, 30, 60, 120 and 240 kHz
- All self-contained slot formats
- Standalone (SA) and non-standalone (NSA) deployments
- Multi-layer network deployments
- Intra- and inter-band carrier aggregation
- Dual connectivity (5G NR + LTE)
- Dynamic spectrum sharing (DSS) between 4G and 5G
- Coordinated multipoint (CoMP) transmission and reception
- Advanced bearer and service modelling
- Massive MIMO: SU-MIMO, MU-MIMO and transmit/receive diversity
- 3D beamforming
5G traffic modelling
- Voice, data and mobile broadband services
- User equipment, user profiles and traffic environments
- Multi-service raster and vector demand maps, including live-network traffic
- Fixed subscriber traffic modelling
Simulation and analysis
- Active beamforming antennas with broadcast, service and refinement beams, and beam sets
- RRM, interference coordination, aggregation and backhaul capacity analyses
- Coverage, cell and beam acquisition, DL/UL service areas and throughput plots
- PCI, PSS, SSS and PRACH RSI collision analysis
- Coverage plots combining predicted and measured values from KPIs and traces
Neighbour planning & interference
- Manual and automatic multi-frequency, multi-layer neighbour planning
- Hybrid allocation based on predictions and live-network data
- Prediction-based interference matrices in an open format
- Import of measurement-based matrices and third-party editing
Multi-RAT 2G/3G/4G/5G planning
- Unified network databases with site and antenna sharing
- Unified multi-service traffic model
- Combined Monte Carlo simulator
- Simultaneous display and analysis of network layers
- Inter-technology handover modelling
- Inter-technology interference analysis

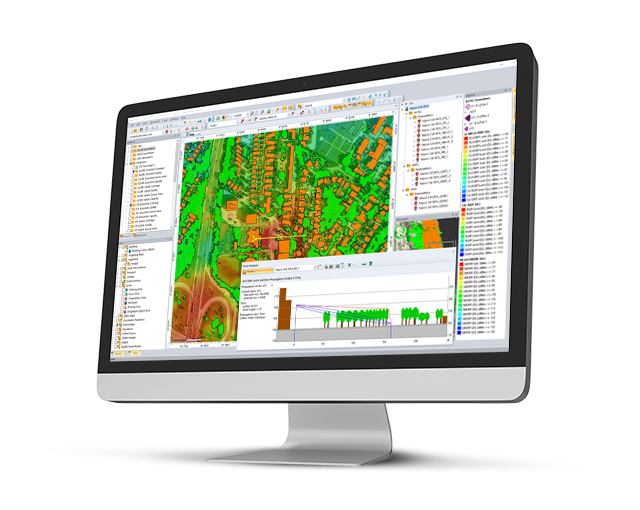

mmWave propagation with Aster
5G bands and urban conditions demand high-performance propagation modelling. Aster — delivered as a separate module — is based on advanced ray-tracing techniques and combines high accuracy with superior calculation speed, including a dedicated model for frequencies above 6 GHz.
Ray-tracing
28 GHz
Vegetation loss
Atmospheric absorption
Rain attenuation

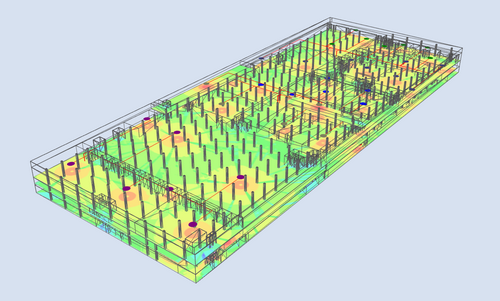

Atoll In-Building
Centimetric indoor design inside the same Atoll project
Atoll In-Building extends the platform to the centimetric precision and level of detail required for indoor wireless design. It supports multi-RAT 2G, 3G, 4G, 5G and Wi-Fi 6 indoor networks, including active, passive and hybrid DAS as well as indoor small cells — for stadiums, underground tunnels, corporate campuses, industrial sites and commercial centres.
Why integrated indoor/outdoor modelling matters
5G makes RAN planning more complex and requires modelling complex venues in detail. Atoll In-Building lets operators plan and optimise indoor and outdoor networks simultaneously, directly assessing combined coverage, throughput and interference — and delivering more accurate network plans.
- Common data structure, instinctive user interface and reliable calculation algorithms
- Country-wide deployments as well as deep dives into multi-building, multi-floor scenarios
- Detailed DAS, cabling, amplifier and antenna modelling for accurate coverage/throughput and bills of materials
Building layout design
- Automatic creation of buildings and floors from 3D building vectors
- Floor-plan import from PDF and image files
- Walls, partitions, pillars, doors, windows, inclined surfaces, cable trays
- ITU-R P.1238 environments and user-definable materials
Equipment modelling
- Base stations and access points as signal sources
- Passive DAS: splitters, couplers, amplifiers, filters, attenuators, loads
- Active DAS: master units, expansion units, remote units, RF interfaces
- Cables, jumpers, connectors and adapters
Indoor network design tools
- Cross-floor and multi-building design projects
- Floor views, schematic design views and 3D views
- Installed component inventory, ports and wiring
- Support for indoor shared RAN

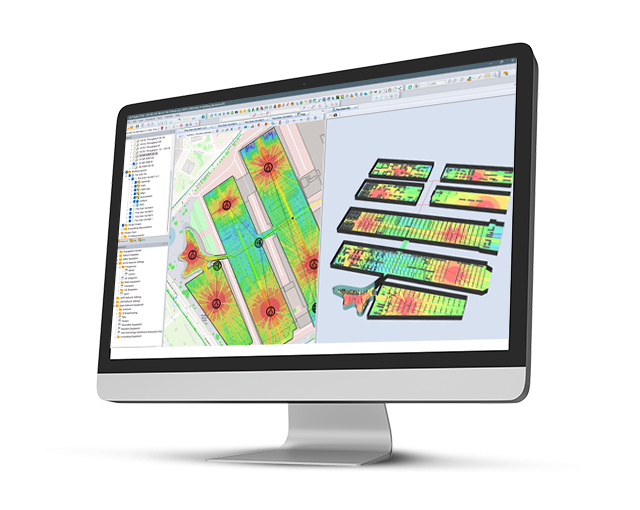

Propagation and predictions
- Multi-wall ray-tracing on building layout vector data
- Floor-by-floor coverage plots for the entire building
- Per-floor, per-building and global statistics
- Multi-floor TX-RX profiles and LoS/NLoS path analysis
Measurements
- Walk-test import, display and per-floor analysis
- RSRP and throughput measurements
- Point maps and interpolated coverage maps
- Measurement vs. prediction comparison
Reports and deliverables
- Bills of materials and installed-component lists
- Antenna EIRPs, link budgets, EMF and MPE values
- Compiled PDF or print deliverables
- Floor views, coverage plots and report spreadsheets

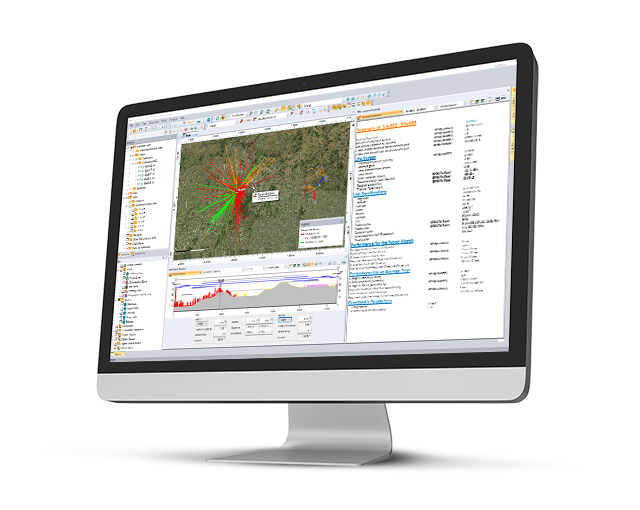

Atoll Microwave
Point-to-point and point-to-multipoint backhaul planning
Atoll Microwave is a state-of-the-art backhaul and transmission planning and optimisation tool for large microwave link networks — designed according to ITU recommendations, industry standards and operator guidelines, and fully integrated with Atoll radio planning modules.
One platform for radio and transport
Full integration with Atoll radio planning modules allows immediate sharing of planning and optimisation data for backhaul design. Atoll Microwave also takes advantage of the Atoll platform GIS, user and data management and reporting features, and is used by major wireless operators and equipment vendors worldwide.
- LoS, nLoS and NLoS links across radio, microwave and mmWave frequencies
- Wired transmission technologies (optical, copper) in the same project
- V-Band and E-Band links, ATPC, adaptive modulation, diversity and repeaters
- Backhaul Capacity Planning module for end-to-end traffic routing and dimensioning
Link modelling
- Point-to-point and point-to-multipoint links
- ITU standard and user-defined frequency bands, high-low configurations, channelisation plans
- Microwave radio and antenna modelling: vendor parameters, IRF, signatures, polarisation, radomes
- Repeaters, space and frequency diversity, dual polarisation
Link design
- LoS visibility and NLoS coverage plots with multipath analysis
- Path profiles with Fresnel zone clearance at multiple K factors
- Off-path profiles on the horizontal plane
- Automatic antenna height optimisation, reflection point analysis, link assistant
Quality and availability
- Objectives based on ITU-R G.821, G.826 and G.828
- IP link objectives based on ITU-T Y.1541
- User-defined performance objectives and parameters
Link performance
- ITU-R P.530 propagation prediction methods
- Crane, Vigants and K-Q models, ITU and user geoclimatic parameters
- Multipath, rain and obstruction fading reports
- End-to-end multi-hop link analysis
Interference and frequency planning
- Evaluation based on ITU-R P.452
- Detailed interference analysis with interferer ranking
- Interactive automatic channels-to-link allocation, low/high conflict analysis
- Interference impact in link reliability reports
Point-to-multipoint and capacity
- PMP hub and terminal modelling, hub coverage predictions
- Hub-terminal connectivity analysis
- Backhaul topology and traffic routing modelling
- Capacity dimensioning, failure scenario analysis and audit

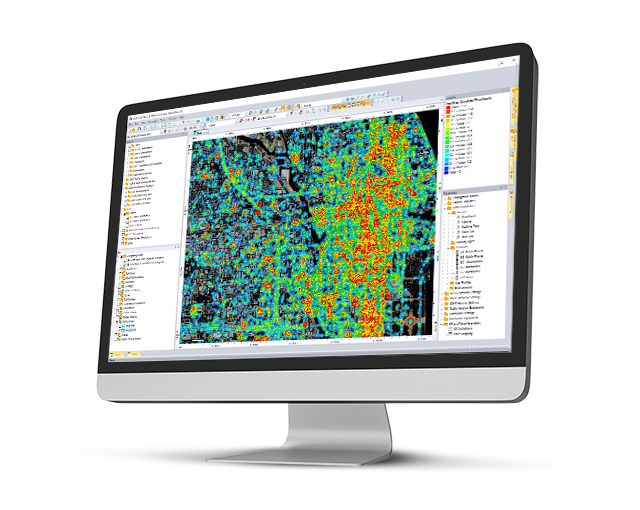

Atoll Live
Prediction-based and measurement-based planning, in one hybrid solution
Atoll Live incorporates KPIs, UE/cell/MDT traces, CEM and crowdsourced data to add real-world information to predictions across planning and optimisation tasks. Live data can drive site selection and steer the optimisation algorithms of AFP and ACP — extending both accuracy and scope of use.
What live-network data changes
- Identifies congestion areas and pinpoints zones that need additional capacity
- Tunes antennas and network parameters using real subscriber measurements
- Plans neighbours, 5G NR / LTE PCI and UMTS scrambling codes
- Builds traffic demand and heat maps from cell statistics, traces and CEM data
- Drives ACP site selection and its cost/driving functions
KPI
UE / Cell / MDT traces
CEM data
OSS interfaces
Crowdsourced data
KPIs
- Multi-technology KPIs from flat files and database connections
- KPI editor with user-definable thresholds and combinations
- KPI display on the map as transmitter, cell coverage or service-area attributes
Traces and OSS
- Multi-technology UE/cell/MDT traces and CEM data
- Live connections to multiple trace and CEM sources
- Multi-vendor trace, CM and GSM OSS interference/traffic import
Propagation and coverage
- Predicted path losses combined with path losses extracted from traces
- Combined prediction/measurement coverage and service plots
- Measurement-based coverage plots
Planning driven by data
- Prediction and KPI-based automatic neighbour planning
- KPI-based tuning of black, white and neighbour lists
- Prediction, KPI and measurement-based PCI, PRACH RSI and frequency planning

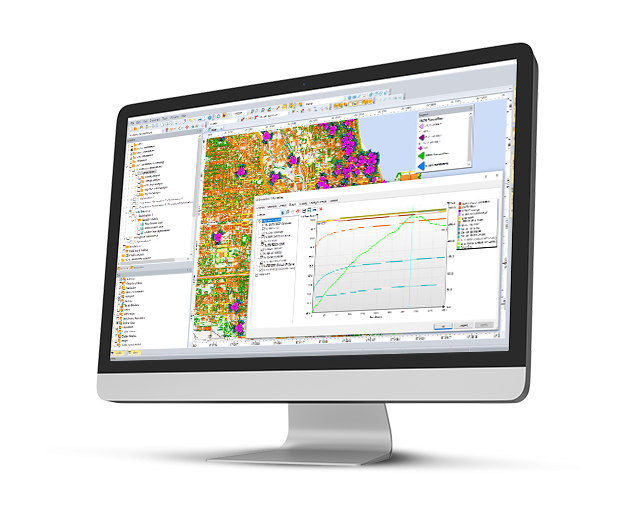

Automation
Automatic Cell Planning and Automatic Frequency Planning
Atoll includes advanced, multi-technology ACP and AFP modules that run inside the standard Atoll user interface. All optimisation data and results are stored in the Atoll project files and databases, giving a direct return on investment from the planning environment you already use.
ACP provides integrated network optimisation functions for 5G NR, LTE, NB-IoT, UMTS, GSM, CDMA, WiMAX, Wi-Fi and LPWA/IoT — including combined 5G NR/LTE/NB-IoT/UMTS/GSM optimisation together with small cells and Wi-Fi.
Optimisation objectives
- Coverage improvement and capacity enhancement
- Traffic distribution and throughput maximisation
- Service quality and interference reduction
- In-building multi-storey optimisation
- EMF exposure mitigation
- LPWA/IoT server redundancy
Optimised parameters
- Antenna type, height, azimuth and tilt
- Cell transmit power
- Cell on/off
- Candidate macro and small-cell site selection
- Automatic site placement for greenfield networks
Control and results
- Multi-technology objective definition and cost function with criteria weighting
- Clutter-dependent and area-dependent thresholds
- Pixel-wise geographic weighting from traffic maps and traces
- Implementation cost assessment per parameter change
- Changes ranked by potential improvement, with multiple stored plans

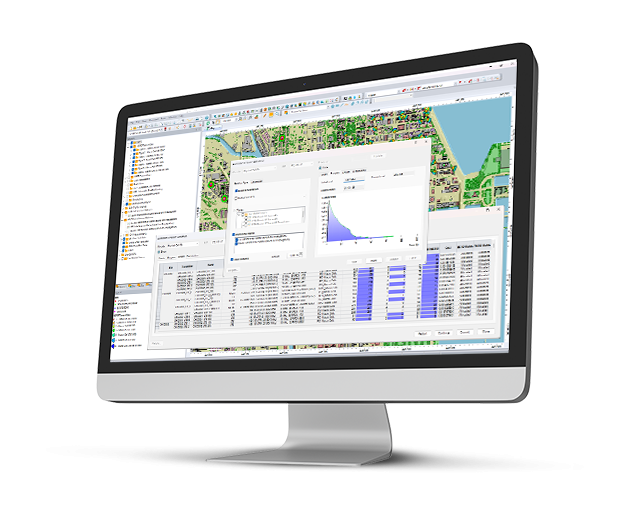

AFP modules are based on sophisticated optimisation techniques used by a large number of operators worldwide, with dedicated 5G NR, 4G LTE, 4G NB-IoT, 2G GSM, WiMAX and Wi-Fi modules supporting technology-specific allocation features.
5G NR AFP
- Automatic frequency carrier allocation
- PCI planning considering PSS and SSS collisions
- Automatic PRACH RSI allocation
- Multi-carrier and multi-band networks
LTE / NB-IoT AFP
- Frequency channel allocation and PCI planning (PSS, SSS, RS, UL DMRS, PCFICH)
- NPCI planning for NPSS, NSSS, NRS and UL NDMRS
- PRACH RSI allocation
- Multi-carrier and multi-band networks
GSM, WiMAX and Wi-Fi AFP
- Combined interference matrices from predictions and OSS measurements
- Frequency hopping parameters (MAL, HSN, MAIO) and BSIC planning
- Preamble index and permbase allocation for WiMAX
- Interactive frequency planning on the map (IFP)
Allocation criteria
- Direct, indirect and second-order neighbours
- Inter-cell handover KPIs and inter-cell distance
- Prediction-based or imported interference matrices
Control
- User-definable constraints and editable cost function
- Vendor equipment constraints and features
- Generation, edition, storage and combination of interference matrices
Atoll One · Private networks
Private 4G/5G and Wi-Fi network planning in one installable package
Atoll One is a dedicated version of Atoll designed for small to medium-sized outdoor and indoor Private Mobile Networks. It delivers the same performance, accuracy and reliability that made Atoll the industry-leading planning tool — in a single, easy-to-install, easy-to-learn and easy-to-use package.
Atoll One features
- 4G, 5G, Wi-Fi and microwave links
- Aster outdoor and multi-wall indoor propagation models
- Calibration using real-world measurements
- Floor-plan import and 3D building modelling
- Active, passive and hybrid DAS modelling
- Seamless multi-RAT indoor/outdoor predictions
- Drive and walk test import and analysis
- Built-in in-building equipment catalogue
Mining
Utilities
Airports
Smart factories
Railway depots
Use cases
Where Atoll One is deployed
Smart factory
A car plant runs its own private LTE network for production lines, connected tools and quality control. Atoll One imports AutoCAD DWG or BIM IFC data to model walls, floors and pillars with real materials, then places indoor antennas and small cells to remove coverage gaps and interference zones.
Airport
An outdoor LTE network covers runways and taxiways but not terminals, hangars and indoor facilities. Atoll One combines outdoor and in-building DAS modelling in a unified simulation, so planners assess indoor and outdoor coverage together and keep performance consistent across the whole airport complex.

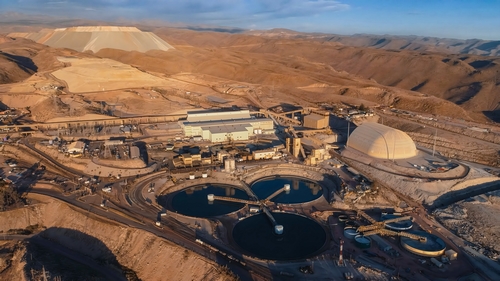

Mine
Terrain, an excavated pit, underground tunnels and remote installations make mining the toughest scenario. Atoll One models small base stations inside the pit, radiating cable and active DAS in tunnels, and multi-hop microwave backhaul — from open sky to underground, in one project.
Utilities
Utility networks span distributed grid infrastructure across wide areas. Atoll One models long-range coverage, backhaul links and critical substation sites so that operational telemetry and control traffic keep their availability targets.
Railway depots
Depots and stations need private LTE or 5G for operations alongside GSM-R or FRMCS infrastructure. Atoll One handles multi-technology projects, dense metallic environments and indoor/outdoor transitions in a single model.
Engineering companies
Atoll One installs in minutes and can ship with the GIS data a project needs — ideal for private mobile operators and engineering companies working project by project for industrial and infrastructure customers.
General features
Everything the platform gives you by default
GIS, propagation modelling, data and user management, customisation, distributed computing, reporting and measurement — included across Atoll, Atoll In-Building and Atoll Microwave.
- Cartographic data management: digital elevation models, clutter type and height, 3D building data (vector/raster), traffic, scanned maps, population and climate data
- Integrated vector/raster cartography editor
- Interfaces with MapInfo, ArcGIS and Google Earth
- Web Map Services (WMS) and online maps such as Bing and OpenStreetMap
- Multi-resolution prediction plots
- Comprehensive integrated propagation model library
- High-performance ray-tracing Aster and Aster mmWave models (option)
- Automatic propagation model tuning and integration of external models
- Administration module with data access and user privilege management
- Flexible database structure with user-defined parameters and custom fields
- Multi-user support with consistency management and data synchronisation
- Standalone, centralised and distributed configurations
- Advanced import/export for migration from other planning software
- Scripting language for user-defined macros
- User-defined calculations based on macros and scripts
- Data- and service-level integration with operator systems
- Multi-threading and parallel computing on multi-core systems
- Distributed computing on networked workstations and servers
- Support for multi-threading and distributed computing in Aster and CrossWave
- Flexible report generator with traffic, population and clutter-based statistics
- User-defined reports based on macros
- Export of reports and prediction plots in industry-standard formats
- CW measurement import, display and analysis
- Prediction/measurement comparison and statistical analysis
- Drive-test data import with call event display and analysis
- Automatic propagation model tuning from measurements
Deployment
System requirements
A guideline for minimum and recommended processing power and resources across Atoll deployment environments.
Operating systems
- Windows 11 Pro / Enterprise (x64)
- Windows 10 Pro / Enterprise (x64)
- Windows Server 2025 (x64)
- Windows Server 2022 (x64)
- Windows Server 2019 (x64)
Hypervisors
- VMware ESXi 4.x / 5.x / 6.x
- Microsoft Hyper-V
- KVM on RHEL OpenStack
Cloud services
- Amazon Web Services (AWS)
- Microsoft Azure
- Google Cloud Platform (GCP)
Database management systems
- Oracle 19c and 21c (clients 19c or later)
- SQL Server 2014 / 2017 / 2019 / 2022
- PostgreSQL 13 / 14 / 15
- Microsoft Access 2003 and later
Trusted worldwide
11,000+ active licenses · 500+ customers · 140+ countries
Atoll has become the industry standard for radio network planning and optimisation, used by major operators and equipment vendors worldwide.
Airtel
Bell Mobility
Claro
Deutsche Telekom
KPN
NTT DOCOMO
Telenor
T-Mobile
Viettel
Design your mobile network from plan to live optimisation
See how Atoll supports precise, repeatable planning for mobile operators — from initial design and frequency planning to densification and live-network optimisation.
